ROTA-5K , 高精密型臥式平衡機ROTA-5K , 高精密型臥式平衡機

Applications :

  • High Speed Spindles and Rotors
  • High Precision Spindles and Rotors
  • High Efficiency Motors and Fans
  • Automobile Components

Product Features :

  • Fast Change Model by User-friendly Design.
  • Final Product Unbalance Checking is Enabled.
  • Semi-finished Rotors Unbalance Checking is Enabled.
  • Be Applicable for Several Rotor Driving Type.
  • Automatically Position the Unbalance.
  • Be Applicable for Various Rotors with Hard Bearing Architecture.
  • Built-in Gage Pressure, Low Rotating Speed Measuring



ROTA-5K , 高精密型臥式平衡機
  • Graphical Radar Map, Easy Operation
  • Determine OK/NG Automatically
  • Vibration Source Analysis by Spectrum


ROTA-5K , 高精密型臥式平衡機
  • Set Up Tolerance with ISO 1940
  • Position Automatically
  • Flexibly Apply for Adding and Removing Mass Balancing


ROTA-5K , 高精密型臥式平衡機
  • Database - High Efficiency E-Tracing
  • Guided interface - Directly Operation without Training
  • Unbalance - High Precision, Balancing at Once

V-Cut Support (Lightweight Rotors)

ROTA-5K , 高精密型臥式平衡機

Belt drives on Top (Small and Medium Rotors)

ROTA-5K , 高精密型臥式平衡機

Belt drives on Bottom (Big Rotors)

ROTA-5K , 高精密型臥式平衡機

Dual Bearing Support (Heavy Rotors)

ROTA-5K 高精密型臥式平衡機雙滾輪支撐

Support Rotors (Partial List)

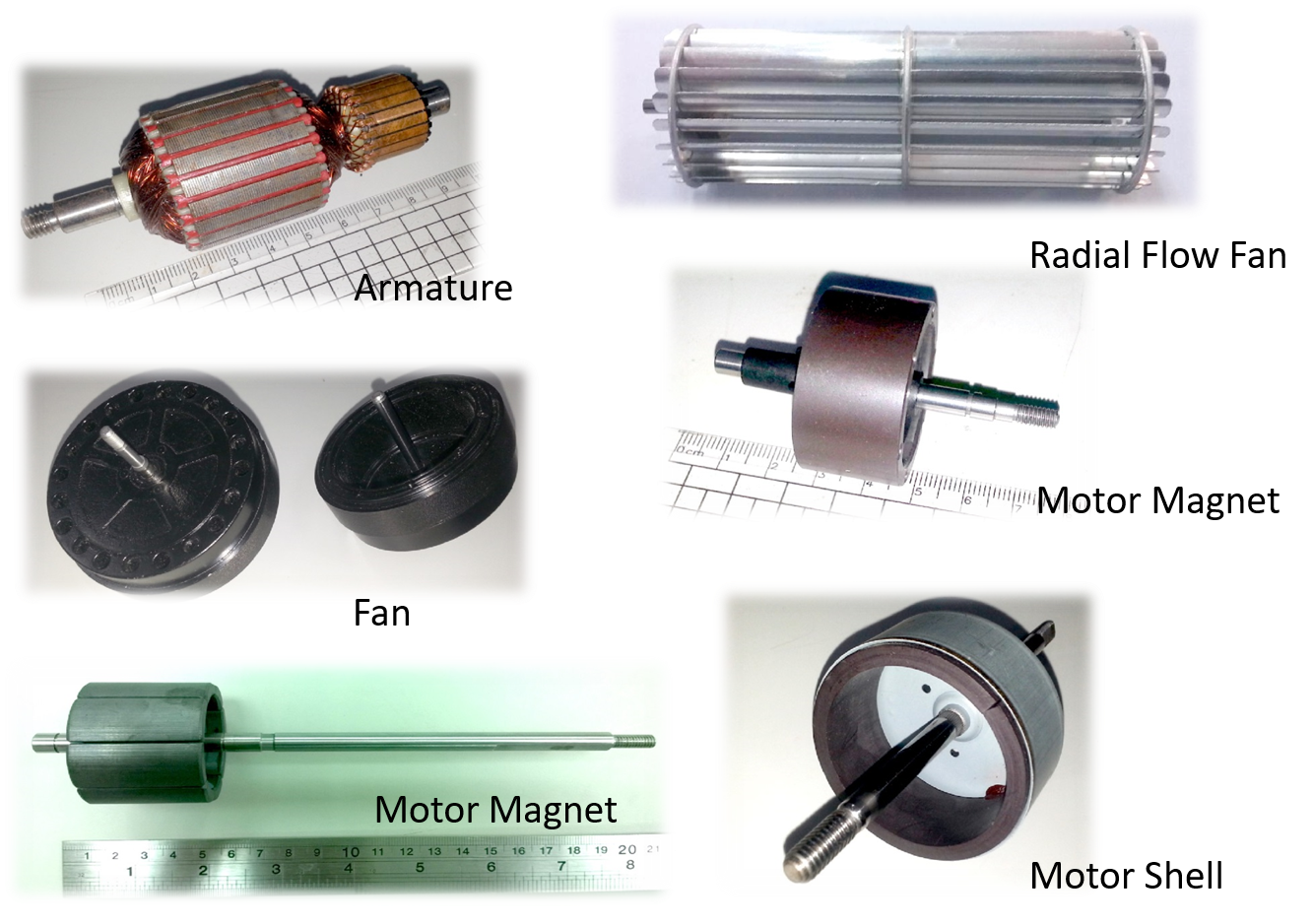

ROTA-5K 高精密型臥式平衡機適用轉子

ROTA-5K Hardware Specification
Rotor Weight 300g - 5,000g
Maximal Rotor Diameter < 100mm
Driving Diameter 15 - 100mm
Distance Between Supports 30 - 300mm
Balancing Speed 700 - 3,600 RPM
URR > 95%
Driving Type Belt drives with 400 W AC Servo Motor
Shaft Diameter 5 - 30 mm
Measurement Mode Horizontal Direction
Unbalance Sensors High Sensitivity Vibration Sensor
Tachometer Photo Sensor
AC Servo Motor Power < 1,500 Watt
Communication Interface USB 3.0
Power Supply AC 200V - 220V / 50 - 60HZ
※ The value depends on rotor size.
※ Appearance and specifications are subjects to change without notice.


ROTA-5K Advantage Characteristics
Graphical Interface Single / Dual / Static Plane Radar Map
Tolerance ISO 1940 Calculator
Balancing with Components Automatically Distribute
Production Report Export as Excel Format
Statistic Automatically Count Production Quantity
Database Real-time Record Measurement Result
Spectrum FFT（Fast Fourier Transformation）
OK / NG Determine OK : Green, NG : Red
Balance Method Add / Remove Weight to Balance
Operating System Win8 / Win10
Language Chinese / English
