FEATURES：
- Wide bandwidth up to 11kHz
- ±25g to ±100g Range
- 2-Wire IEPE Interface
- -8°C to +100°C Operating Range
- Case Grounded Design
- Hermetically Sealed
- Low-Cost, Embedded Applications
APPLICATIONS：
- Embedded Preventive Maintenance
- Embedded Sensing Solution
- Machine Monitoring
- Low-Cost OEM Installation
- Permanent Structural Study
| ACC-501 PERFORMANCE SPECIFICATIONS | ||
| ACC-501-100 | ACC-501-25 | |
| Range (g) | ± 100g | ± 25g |
| Sensitivity (Typical) | 50 mV/G | 10 mV/G |
| Non-Linearity (%FSO) | ±0.2% | |
| Frequency Response (Hz) | 3.0 to 11.2K Hz | |
| Natural Frequency (Hz) | 21.3 K Hz | |
| Transverse Sensitivity(%) | 2.0 | |
| Shock Limit (g) | 1000 | |
| Noise Density | 22.5 μg/√Hz | |
| Compliance Voltage (Vdc) | 18 to 30 | |
| Bias Voltage (Vdc) | 11.0 to 13.0 | |
| Excitation Current (mA) | 4.0 to 8.0 | |
| Operating Temperature | -8 to 100 (°C) | |
| Weight (grams) | 6.0 (without cable) | |
| Mounting | Adhesive | |
| Case Material | Steel | |
| Note : Changes of appearance and specifications are subject to change without notice | ||

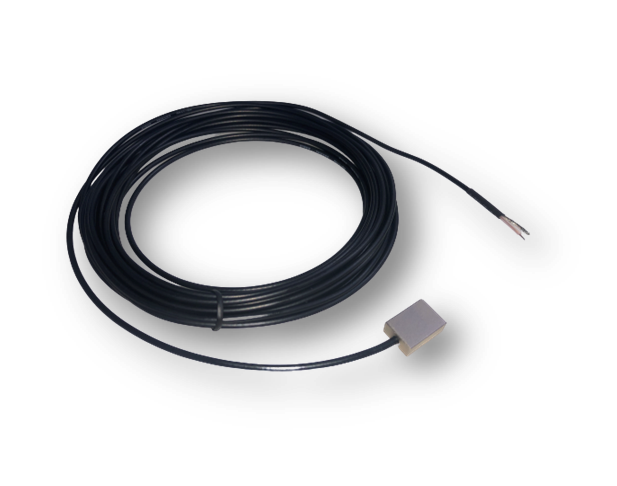

- ACC-501-25-L -- ± 25g Accelerometer
- ACC-501-100-L -- ± 100g Accelerometer
