FEATURES：

  • More Rapid + more Stable + more Precise
  • High Precise and High Throughput  simultaneously
  • More Stable from state-of-art technology

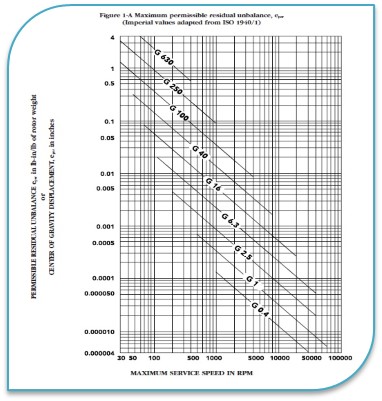

  • ISO 1940 international unbalance standard
  • Mass production database and SPC report
  • Barcode e-Tracing interface
  • Safety Light Curtains
  • Dual/Three planes  for adding or removing mass
  • More Reliable chuck with low GR&R



  • ISO 1940 Tolerance Calculator
  • Database and SPC report
  • Background noise verification
  • Add or remove unbalance
  • Vibration Spectrum Analyzer
  • Excel format SPC report

AR180 Technical Specifications
Work-piece (diameter x height) （ 10.0 x 2.0 ） -（ 80.0 x 25.0 ）
Fan shaft diameter 0.6 - 3.2
Maximal weight of work-piece 50 grams
Working rotation speed 2,100 -5,000
Types of balancing detection Dual or three planes
Dual servo-motor and driver 400 + 100 (Watt.)
Achievable resolution (note) 0.5 (μm)
Minimal residual unbalance (note) 0.009～0.03 (g-mm)
USB Plug and Play Interface USB 3.0 fast  connector
Dimension (length x width x height) 350.0 x 400.0 x  450.0 (mm)
The weight of balancing machine 45.0 (Kg)
Power Requirements Single Phase 200-220V, 1KVA

Note : the value is depend on fan size.
※Changes to appearance and specifications are subject to change without notice
